Description
Compact size
with enough work-space
User friendly
maintenance
Support
screw setting

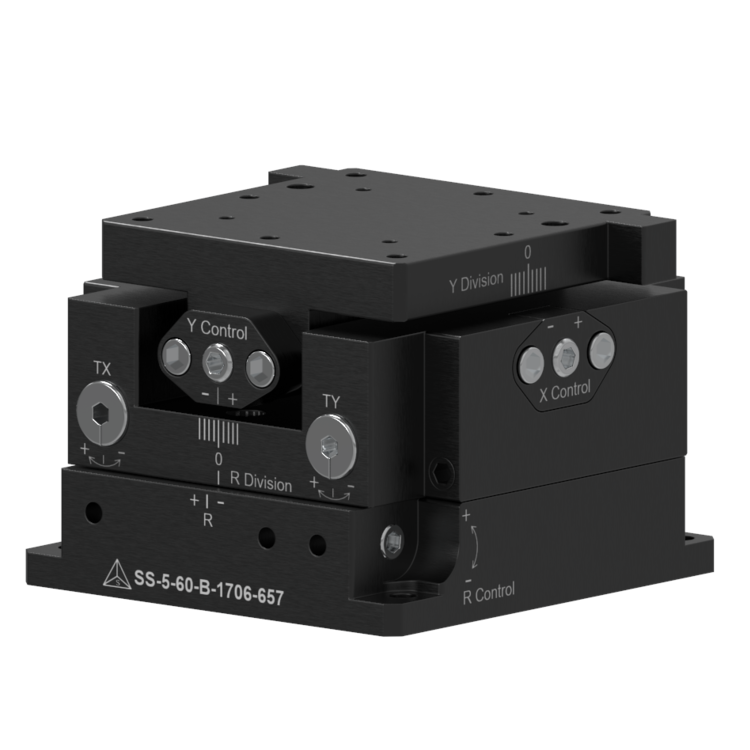

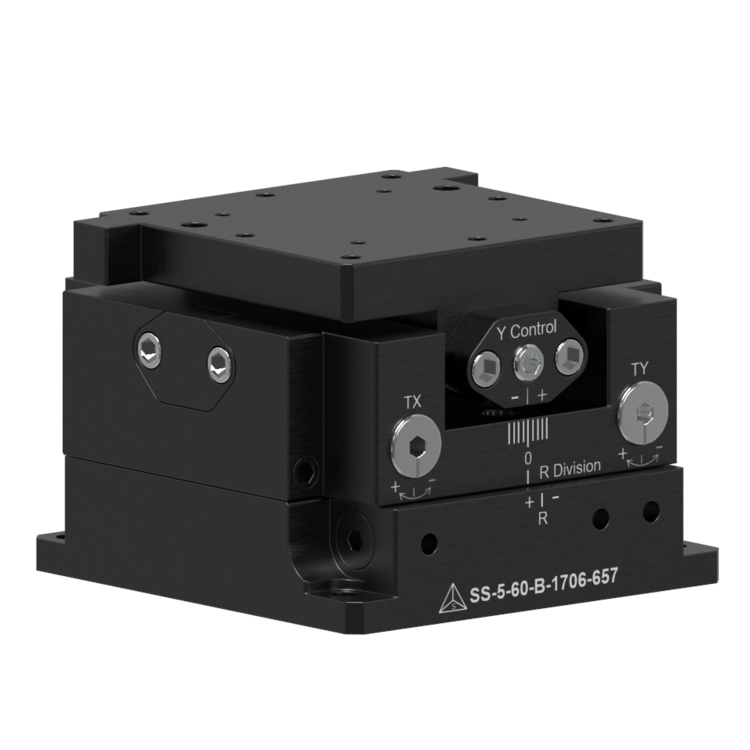

The HVS 5-Axis Stage is compact and integrated so that it can be used without any restriction even when the socket is open.
This compact 5-axis stage is lightweight. The compact size can also reduce the overall system size when it is used for applications.
Furthermore, small movements can be accurately performed by using screws instead of common springs.

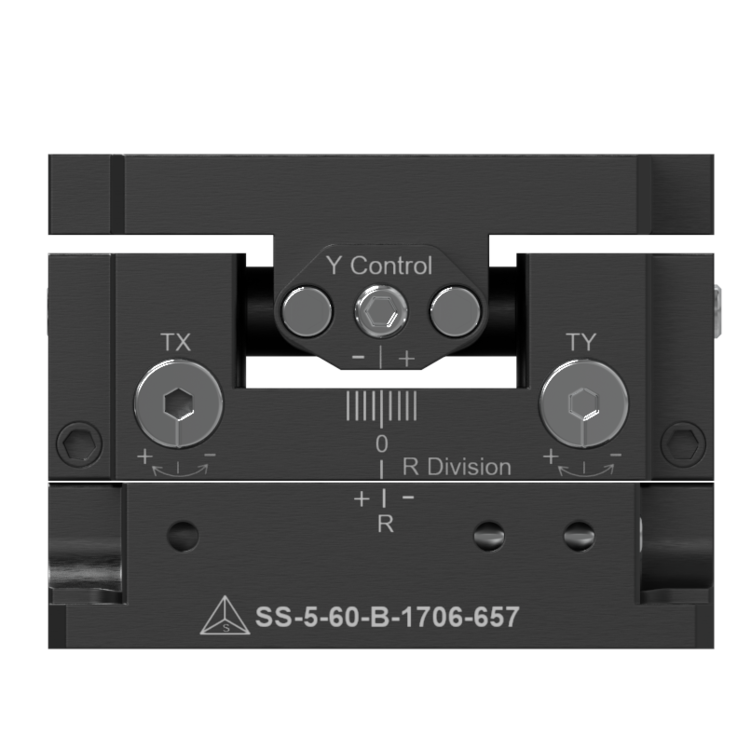

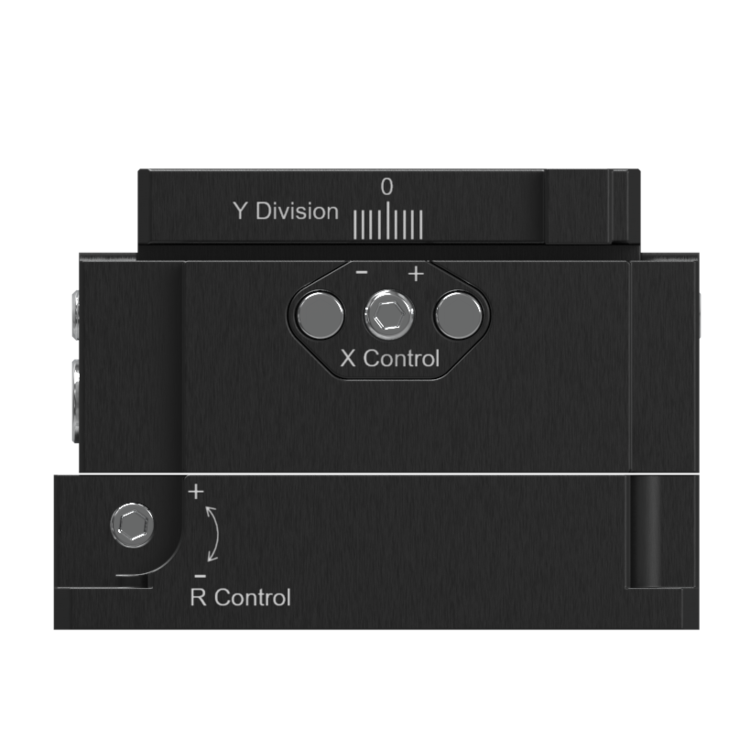

The R-axis setting point in front of the stage allows convenient maintenance, compared to the ordinary stages located on the floor or on the rear.
| Item | Description |
| Title | HVS 5 axis stage |
| Dimension | 74x74x55 mm (can be customized) |
| Stage table | 60×60 mm (can be customized) |
| Travel Guide | connected with screw |
| Load capacity | 6kg (can be customized) |
| Weight | 0.71kg (can be customized) |
| Type | Integral type (non-separable) |
| Setting tool | Hex wrench (3mm) |
