Description
Precise position control at the micrometer level
Adjustable speed, acceleration, force
Simple assembly and control Convenient maintenance

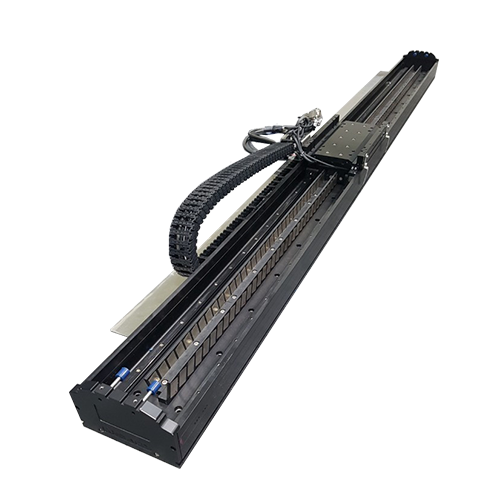

The Hyvision Linear Motor is the best solution for moving units precisely at high acceleration and speed.
The design of a linear motor is the most important factor in creating standards in system design.
Hyvision has essentially designed the linear motor in a simple structure.
The structure makes it easy to use the motor in an application without affecting its constraints such as flatness.
The Hyvision Linear Motor has a partially molded vertical magnet design that could not be found in conventional linear motors.
Such a design has the characteristic that it can make large thrust with small current and does not change Maxwell (Φ).
| Item | Description |
| Width [mm] | 160 |
| Stroke [mm] | Max. 3,000 |
| Max. pay load [kgf] | 12~42 (can be customized) |
| Max. speed [mm/s] | 3,000 |
| Resolution [μm] | ±1.0~5.0 |
| Continuous force [N] | 140~510 (can be customized) |
| Peak force [N] | 430~1,570 (can be customized) |
| Mover length [mm] | 130~443 (can be customized) |
| Mover weight [kg] | 2.4~7.5 (can be customized) |
| LM guide | No.15 / 2Rail 4Block |
| Base & slide | Aluminum profile White Anodizing & Black Anodizing (optional) |
| Estimated Condition | Stroke : 1800 mm Speed : 3000mm/sec Waiting time: 1sec Acceleration: 1.2G |
