Description
EXCELLENT TEMPERATURE STABILITY
WITH HYVISION TECHNOLOGY
Pneumatic heat emission type
for minimized size
Knowledge of
TEC materials test
Compatible controller
and block
The TEC controller is a thermoelectric module using the Peltier effect.
To allow a small range of temperature control using current,
this module is based on the Peltier effect, which can adjust the temperature according to the direction of electrical flow.
Therefore, how quickly and reliably the TEC controller can control the temperature is of the utmost importance.
It is easy and simple to control the Hyvision TEC controller by using a PWM (Pulse Width Modulation) signal which is widely used in DC motors, belts, pumps and other mechanical fields.
In addition, a pneumatic heat dissipation method is used to make the size of the product more compact than that of the fan type.
Hyvision has various solutions for TEC materials.
With Hyvision’s unique knowledge and technologies on experimental design, it is possible to find the best material for your site.
| Item | Description | |
| TEC Controller | Input power | DC7.5V / 5A |
| Output power | 7.5Vdc / 3A / 16.5W | |
| Control range | 5 ~ 70˚C / Depend on TEC Block | |
| Resolution | ±0.1˚C | |
| Control type | PWM control type | |
| Operating mode setup | Manual temperature setup type Protocol control setup type | |
| RS232 Port setup | Baud rate 57600bps / Data bit 8bit Stop bit 1bit / Parity None | |
| Temperature for using | 20 ~ 30˚C | |
| Dimension | W=86mm / D=86mm / H=52mm | |

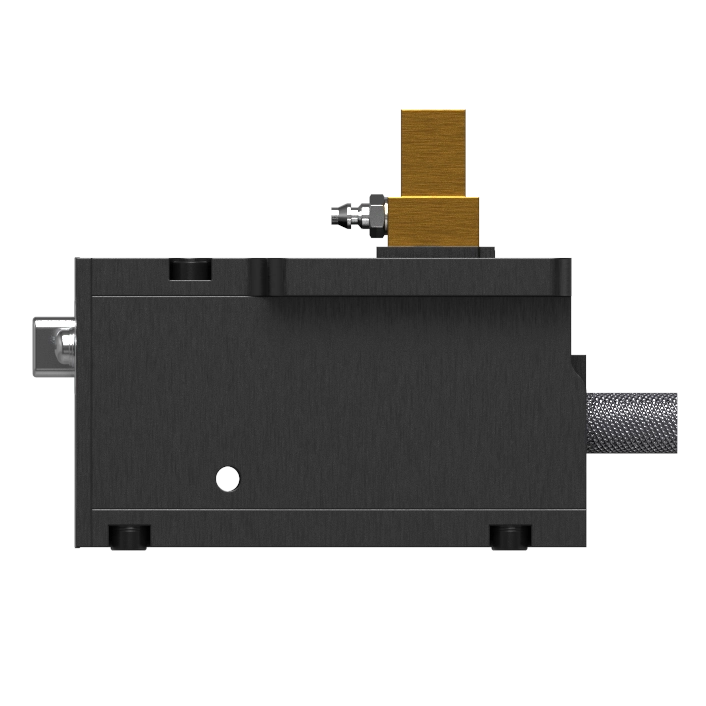

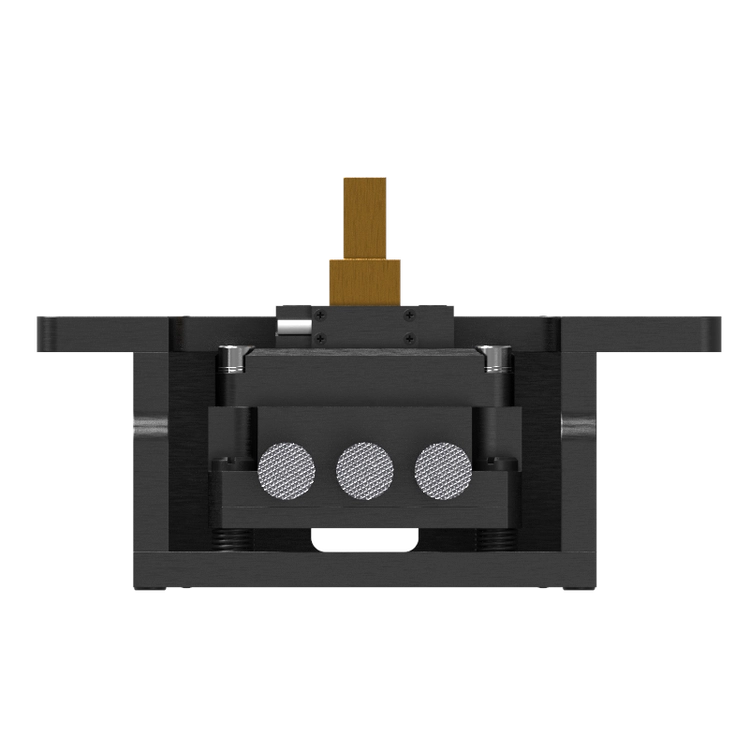

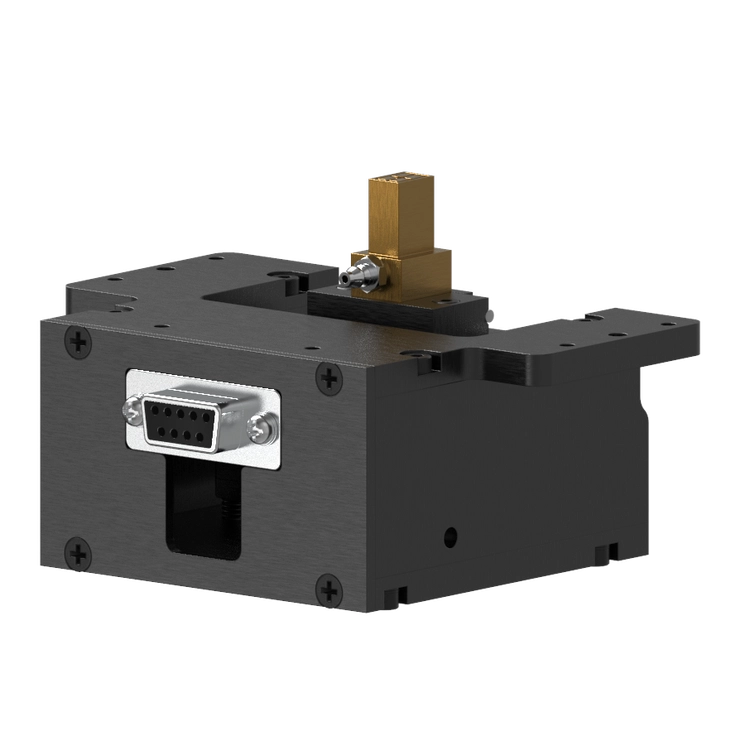

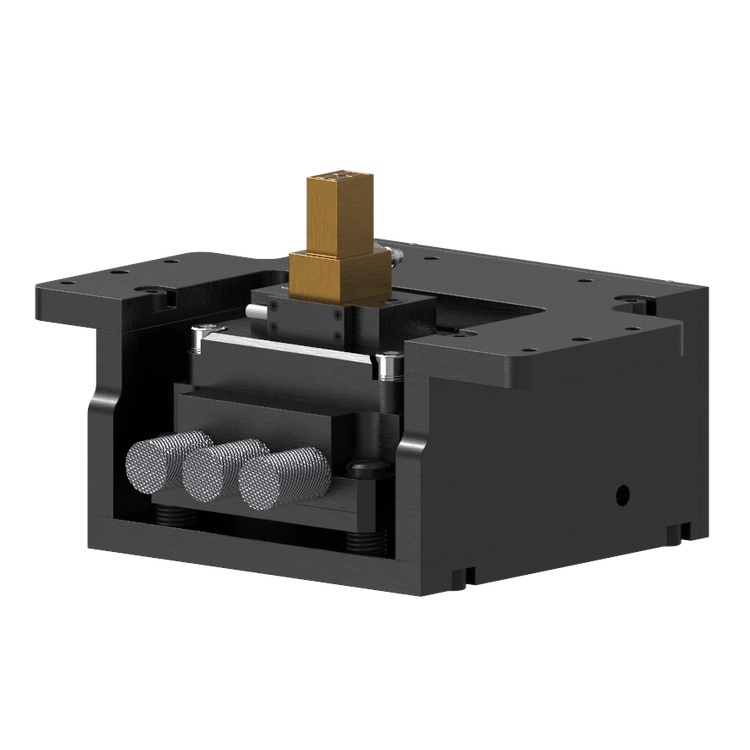

| TEC Block | Input power | DC7.5V |
| Dimension of T-PLATE | 30*15*28.5mm | |
| Measuring range | 5~70℃ | |
| Thermoelectric element | 100~115 Ω | |
| Temperature sensor | 1.72~1.93 Ω | |
| Dimension | W=95mm / D=87mm / H=56.9mm |
