Dual Calibration
Dual Grabber
2Index 4Para
Item | Description |

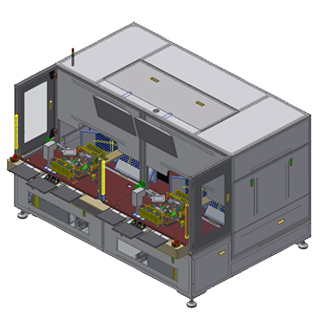

Title | Dual calibration test system |
Test Concept | 2Index 4Para 8Port |
Driving part | – Index R, Chart XZ, Socket R, Chart Tilt, Foreign-substance Z : 18-axis Motion control – Chart Y : 1-axis Manual driving |
Chart | Max Chart Size : 325 x 240mm Chart Distance : 400~630mm |
Light Source | Luminance : 1000 Lux ±100K Color temperature : 6000K ±200K |
Foreign-substance test light source | ACL-85×85-W |
Image Grabber | V5FP Dual |
PC / Monitor | 2x PC / 2x Monitor |
Dimension(WDH) | 2,370 * 1,600 * 1,680mm |
Dual Calibration
Dual Grabber
2Index 4Para
Item | Description |
Title | Dual calibration test system |
Test Concept | 2Index 4Para 8Port |
Driving part | – Index R, Chart XZ, Socket R, Chart Tilt, Foreign-substance Z : 18-axis Motion control – Chart Y : 1-axis Manual driving |
Chart | Max Chart Size : 325 x 240mm Chart Distance : 400~630mm |
Light Source | Luminance : 1000 Lux ±100K Color temperature : 6000K ±200K |
Foreign-substance test light source | ACL-85×85-W |
Image Grabber | V5FP Dual |
PC / Monitor | 2x PC / 2x Monitor |
Dimension(WDH) | 2,370 * 1,600 * 1,680mm |
