HyVISION SYSTEM

High Speed Picker

Slimmer. Faster. Smarter.

A sleek design, exceptional speed, and intelligent motion control

From complex geometry measurement to precision quality control!

Application Field

Semiconductor / Electronics Industry

Pick & Place

High-precision Pick & Place operation,

picking from defined positions and

placing accurately at target locations.

Attaching

Precise attachment of components

by means of press-fitting or adhesive bonding.

Pressing

Precise forming and bonding of

components (FPCB) through an automated process applying consistent pressure.

Play video

From complex geometry measurement

to precision quality control!

Application Field

Pick & Place

High-precision Pick & Place operation,

picking from defined positions and

placing accurately at target locations.

Attaching

Precise attachment of components

by means of press-fitting or adhesive bonding.

Pressing

Precise forming and bonding of

components (FPCB) through an automated process applying consistent pressure.

New technologies are constantly upgraded!

Main Features

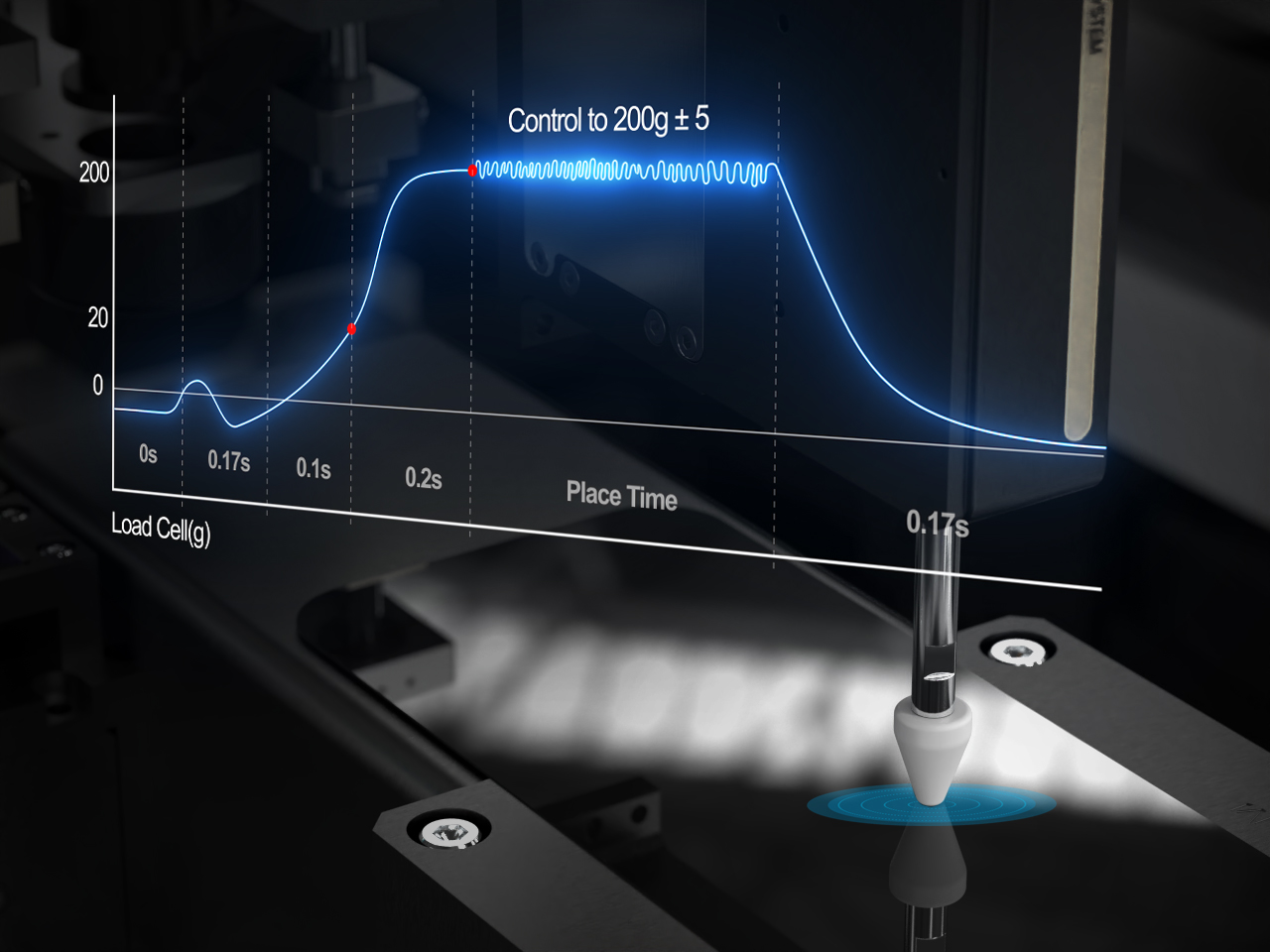

Ultra Precise Micro Force Control


Target Force ±5g Control


The High Speed Picker supports

Target Force ±5g precision control,

enabling stable and accurate

handling of even micro-level loads.

Long Stroke, More Flexibility

Extended Tip Design & Wide Operating Range


High-speed, high-precision repetitive

motion with reliable repeatability

across stroke ranges up to 50 mm.

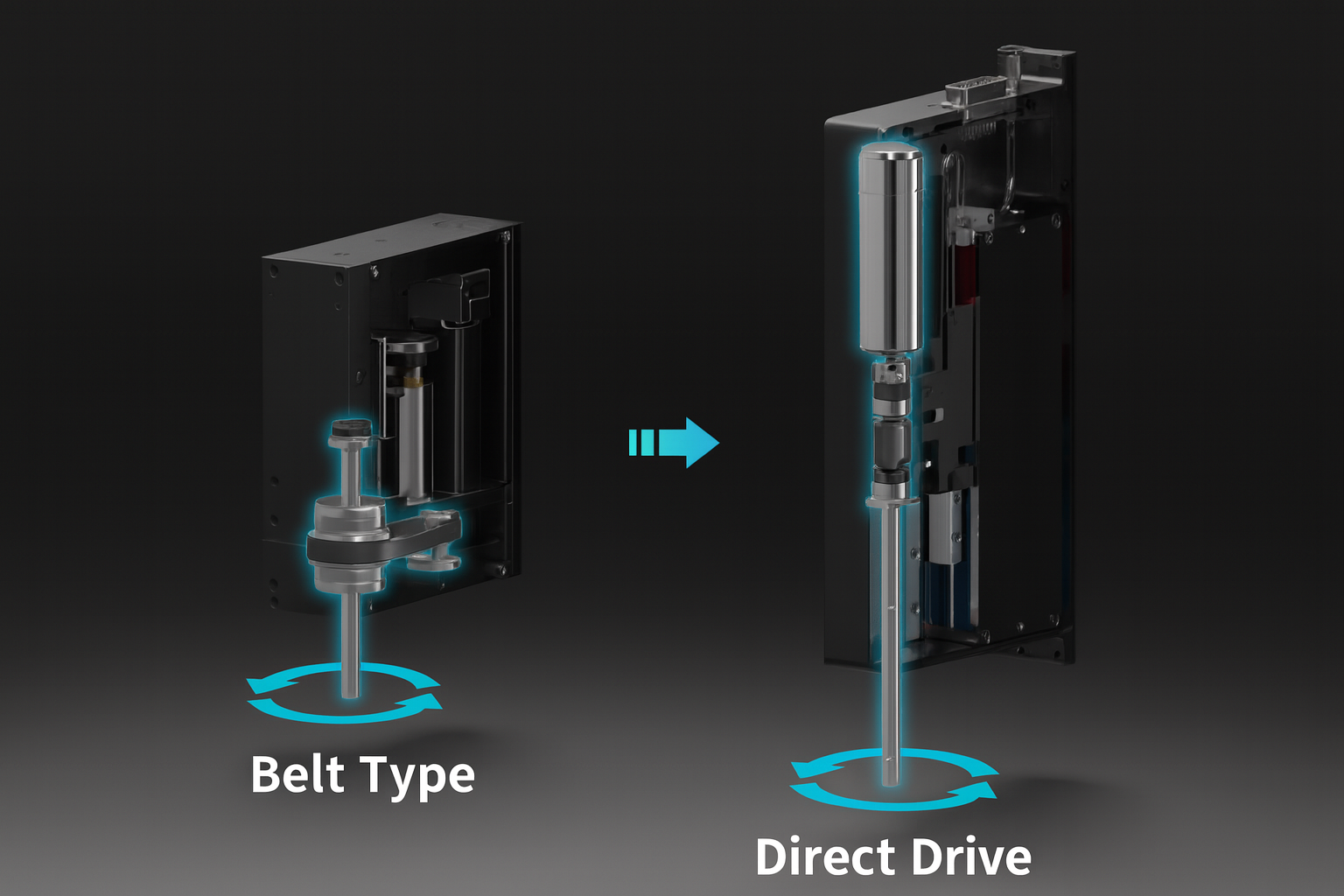

Direct Drive Rotation

Offers approximately 10× faster response

speed compared to belt type systems



The R-axis and rotary motor are designed

with a direct-drive structure, ensuring stable

operation without heat build-up or wear

even during long-term continuous use.

Ultra High Speed & Precision Control


Max. 2,000 mm/s & ±2 µm Positioning Accuracy



Precise force control enables ±2 µm accuracy,

 while a high-performance linear scale

ensures stable motion up to 2,000 mm/s.

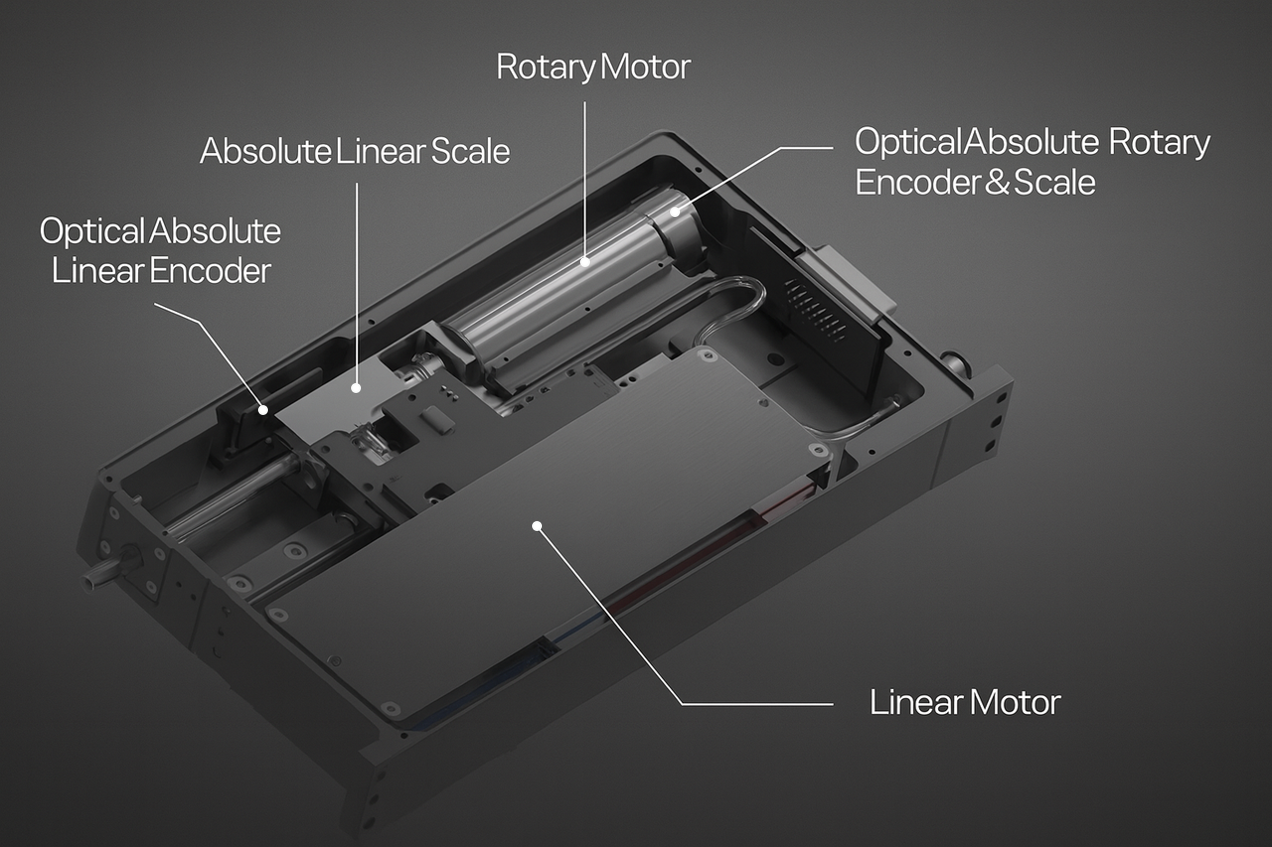

Internal Structure of Picker

Core Components for Diverse Automation Environments



HyVISION provides core picker components

optimized for high-precision automation,

with robust design and customizable solutions.

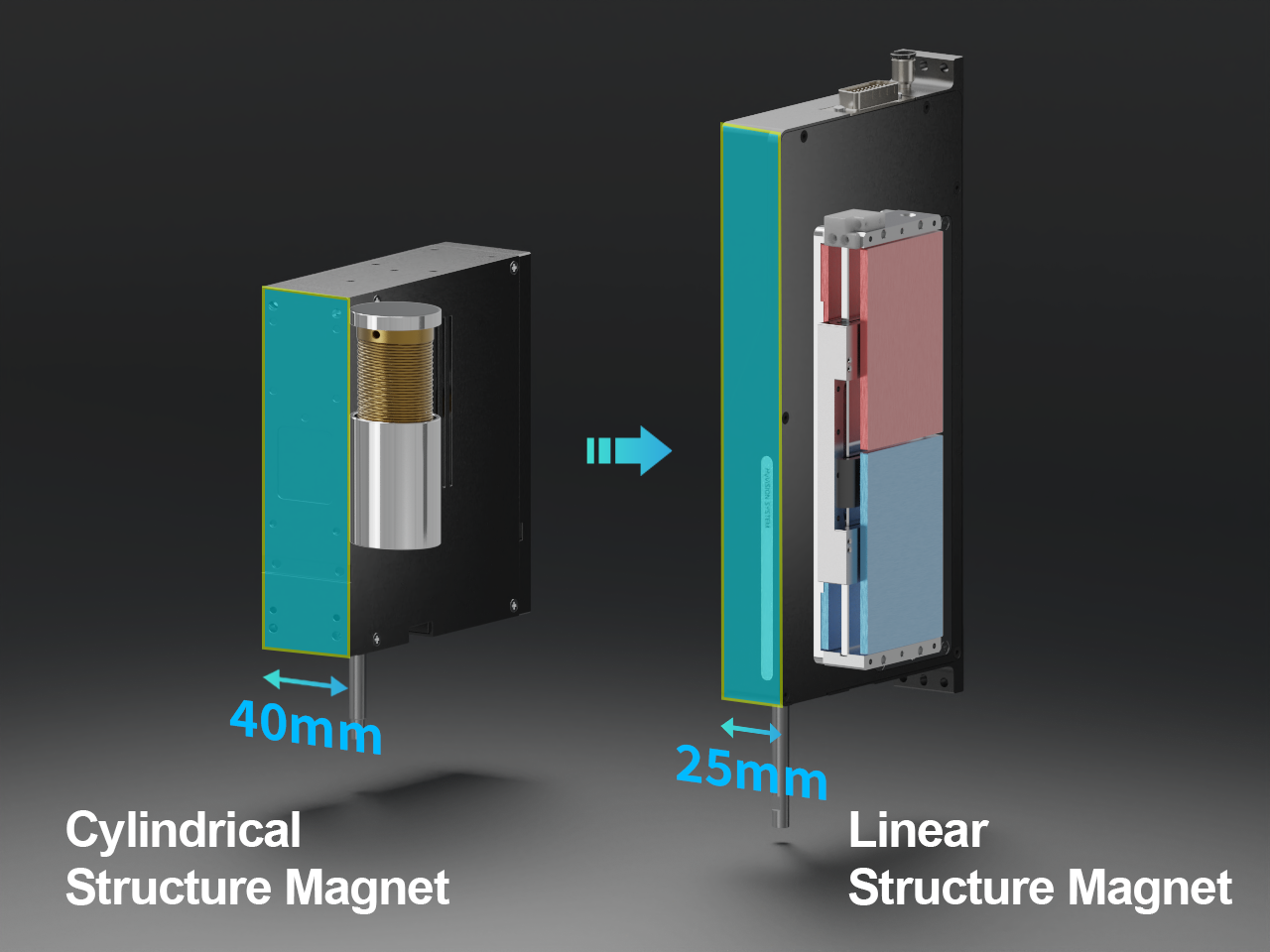

Slim Structure

Cylindrical → Slim Linear Type



By replacing the conventional circular magnet

with a slim linear type, the space efficiency

of the internal drive unit has been maximized

and the overall structure streamlined.

Main Features

New Technologies are constantly upgraded!

Ultra Precise Micro Force Control

Target Force ±5g Control

The High Speed Picker supports

Target Force ±5g precision control,

enabling stable and accurate

handling of even micro-level loads.

Long Stroke, More Flexibility

Extended Tip Design & Wide Operating Range

High-speed, high-precision repetitive

motion with reliable repeatability

across stroke ranges up to 50 mm.

Direct Drive Rotation

Offers approximately 10× faster response

speed compared to belt type systems

The R-axis and rotary motor are

designed with a direct-drive structure,

ensuring stable operation without

heat generation or wear even during

long-term continuous operation.

Ultra High Speed & Precision Control

Max. 2,000 mm/s & ±2 µm Positioning Accuracy

Play video

Precise force control enables

±2 µm accuracy, while a

high-performance linear scale ensures stable motion up to 2,000 mm/s.

Internal Structure of Picker

Core Components for Diverse Automation Environments

HyVISION provides core picker components optimized for high

precision automation, with robust design and customizable solutions.

Slim Structure

Cylindrical → Slim Linear Type

By replacing the conventional circular magnet with a slim linear type,

the space efficiency of the internal

drive unit has been maximized,

and the overall structure streamlined.
