Macro Lens

High Resolution Macro Imaging Solution

At ultra-close working distances, it delivers clear, distortion-free images.
With a high-resolution optical design, it enables precise detection of even
the finest defects. It flexibly accommodates various working distances and
magnification conditions. It is optimized for a wide range of industries where
high-precision inspection is required.

  • Precision Engineering Design
  • Low Distortion
  • Various Field of View (FOV) Options
  • Wide Compatibility
  • Superior Optical Performance
  • Customized Design

Main Features

1
Precision engineering design
To maintain sharp and consistent images,
we apply tolerance design and meticulously manage
the manufacturing and assembly processes.
3
Various field of view (FOV)
Machine vision lenses are designed to allow
for focus adjustment across a variety of
field of view (FOV) angles.
2
Low distortion
Designed with the same magnification regardless
of working distance, it delivers high-resolution,
sharp images without distortion at any angle.
4
Versatile compatibility
We use multi-layer and broadband coating
designs compatible with applications across
a wide wave-length range.
5
Exceptional optical performance
We use optical technology that minimizes stray light to
maximize light transmission and reduce unnecessary
scattering, ensuring optimal performance.
6
Customizing Design
The compact design enhances space utilization
and makes assembly with other devices easier.

Specifications


Item

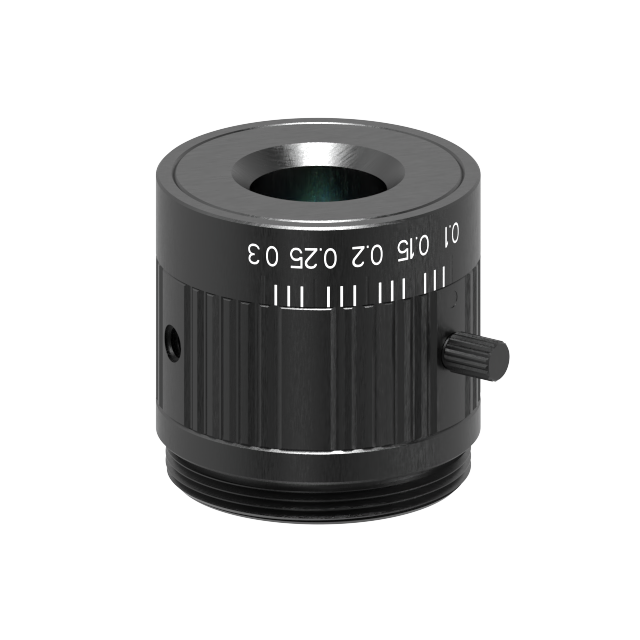

HVO-F20-Z

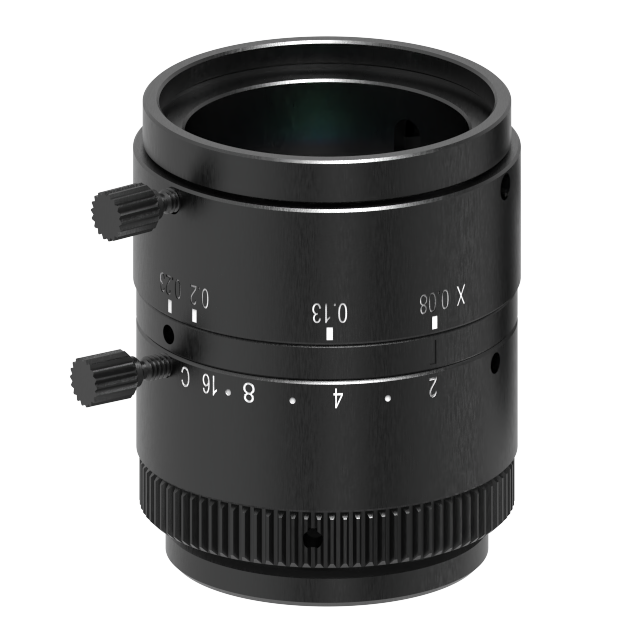

HVO-MF25

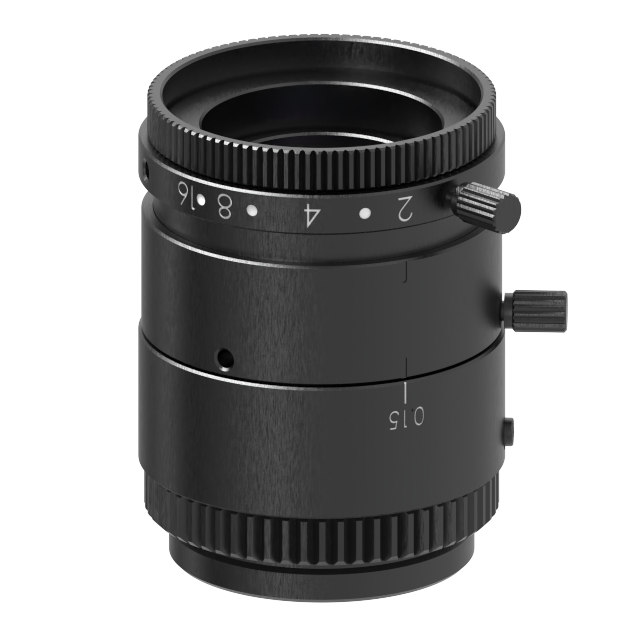

HVO-MF30

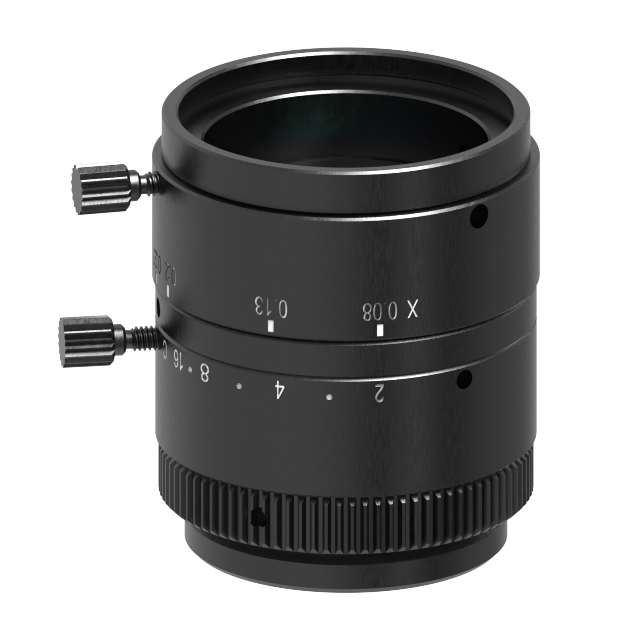

HVO-MF35
Magnification
0.10x ~ 0.30x0.05x ~ 0.25x0.08x ~ 0.23x0.30x ~ 0.50x
Working Distance
212.21 mm ~ 73.19 mm508.2 mm ~ 100.2 mm381.6 mm ~ 141.5 mm142.9 mm ~ 96.1 mm
FOV (Diagonal)
110 mm ~ 36.67 mm220 mm ~ 44 mm137.5 mm ~ 47.83 mm26.19 mm
Resolution
59.7 um ~ 20.0 um1.405 um ~ 1.741 um1.607 um ~ 1.867 um1.473 um ~ 1.943 um
Distortion
+/-0.015% ~ 0.005%+/-0.09% ~ 0.01%+/-0.07% ~ 0.009%+/-0.08% ~ 0.02%
Working F/#
F9F2.6F2.8F2.9
Relative Illumination
> 95%> 95%> 95%> 95%
Wavelength
VisibleVisibleVisibleVisible
Detector
2/3" C-Mount2/3" C-Mount2/3" C-Mount2/3" C-Mount
