Pouch Type Module Assembly & Inspection Line

End-to-end automation, from cell stacking to module assembly

An automated system that integrates pouch-type battery cell stacking
and assembly processes with pack-level inspection into a single production
line. By combining high-precision vision inspection with automated
handling, it ensures both production reliability and high yield.

  • Module Stacking
  • Hot Melt Dispensing Process Technology

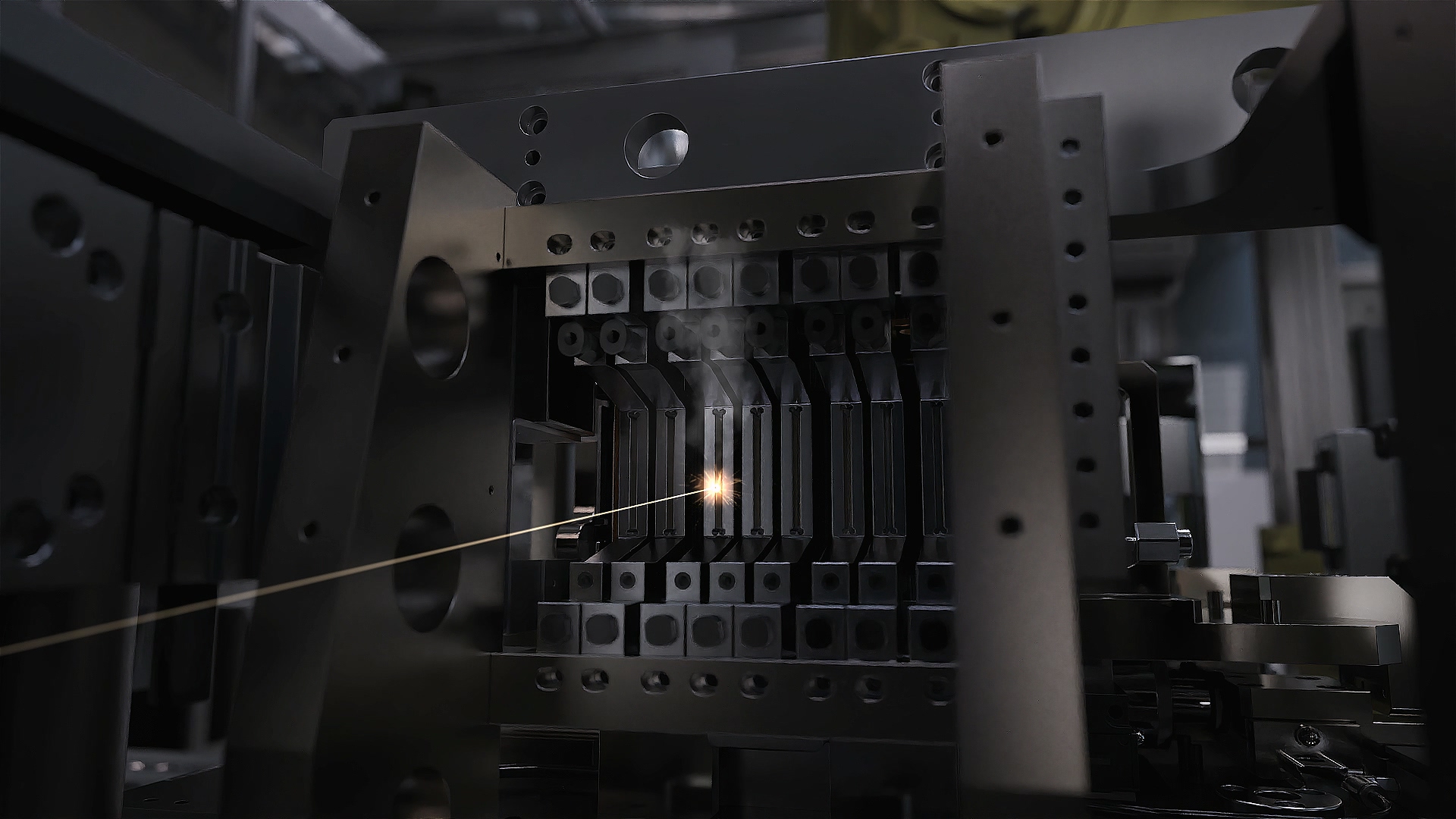

  • Welding Technology (Spot Welding)
  • Module Assembly Inspection

Key Features / Technical

Built on our core capabilities and differentiated technology,
we introduce the key features and technical strengths that deliver new value to our customers.

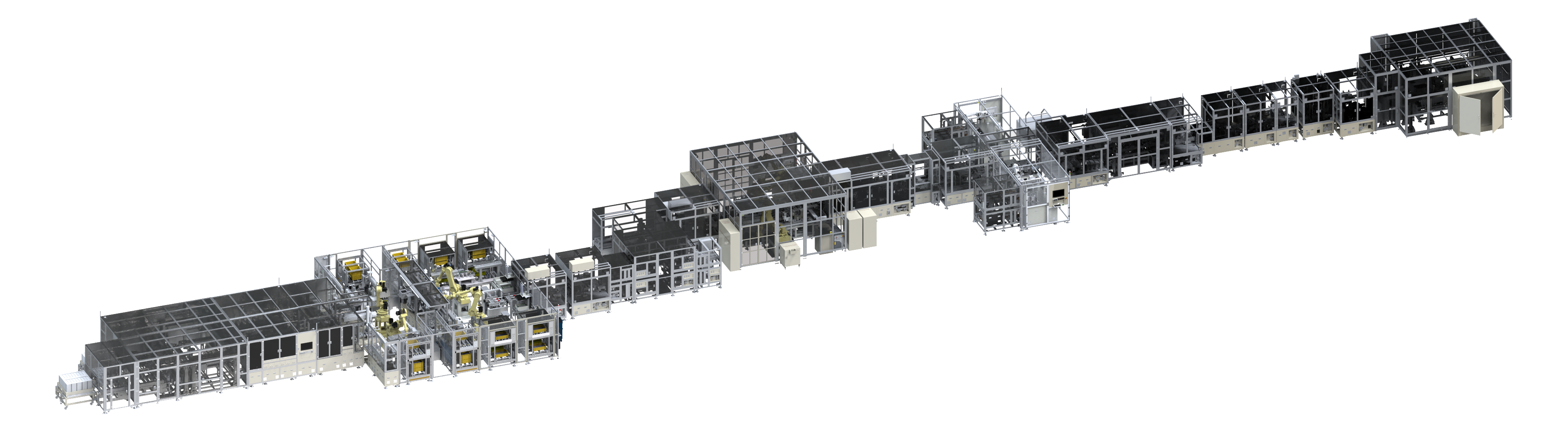

Pouch-type Module Assembly & Inspection Line

* Click a marker to view details for each area.

Main Features

1

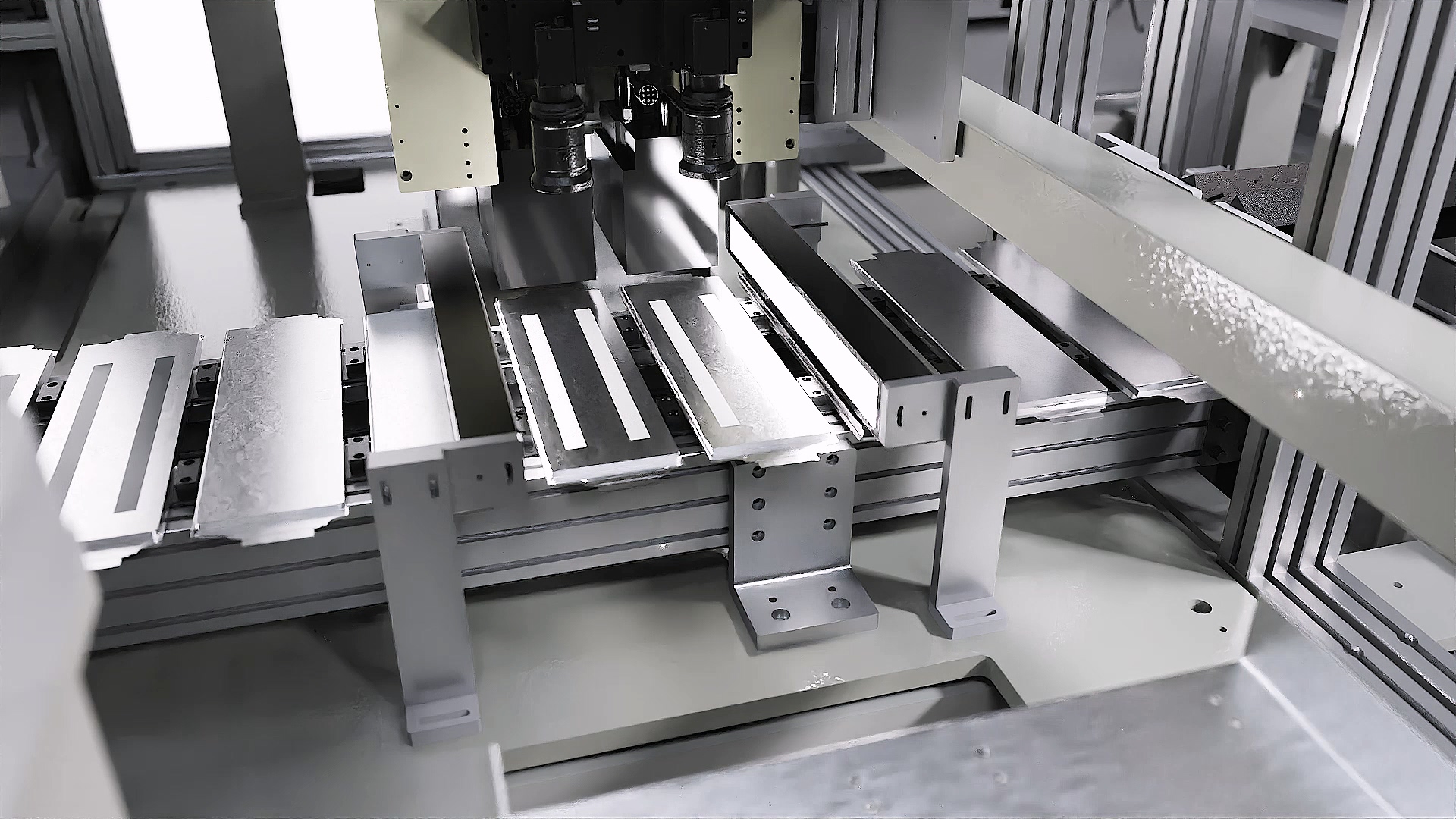

Module Stacking & Hot Melt Dispensing Process Technology
Provides automation and inspection technology
for module stacking and hot-melt application processes.
2

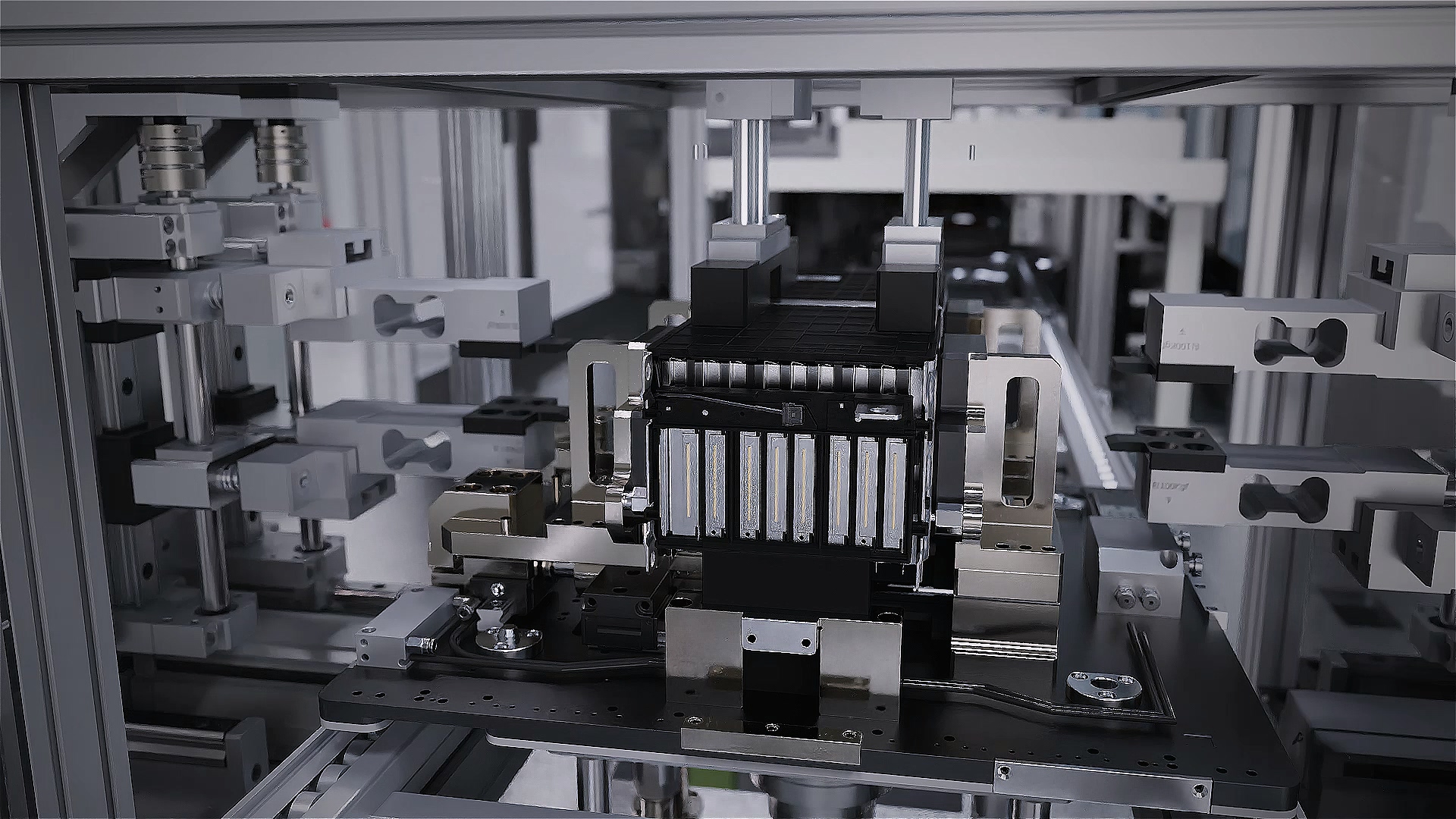

Module Assembly Inspection
Complete in-house process development

Inspection Item

  • Cell Inspection
  • Top Cover Assembly
  • Bolt Fastening
  • Insulation Resistance Test
  • Cell Stacking
  • Lead Bending
  • Appearance Inspection
  • EOL (End-of-Line) Inspection
  • Busbar Assembly
  • Lead Welding
  • Withstand Voltage Test
  • Product Packaging

Specifications

Module Assembly
     73m x 10m x 2.2m
Total
    73m (Automation Line)
