Cylindrical Module & Pack Assembly Inspection

Cell Handling and Precision Welding Vision Inspection

By combining high-speed vision inspection with precision welding
technology, we accurately inspect the assembly quality of cylindrical
battery cells. Our precision inspection system detects even the smallest
defects, ensuring both battery safety and production efficiency.

  • Welding Technology
  • Vision Inspection Technology
  • Equipment Support (Conveyor Bulit in Type)

Key Features / Technical


Built on our core capabilities and differentiated technology,
we introduce the key features and technical strengths that deliver new value to our customers.

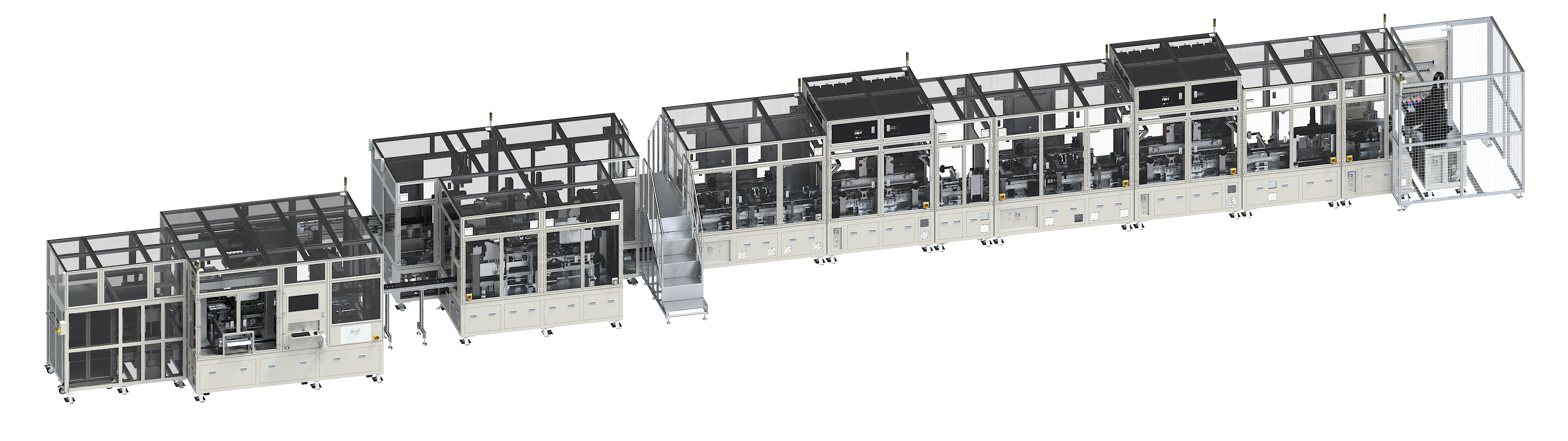

Cylindrical Battery Assembly and Inspection Equipment

* Click a marker to view details for each area.

Main Features

1
Welding Technology

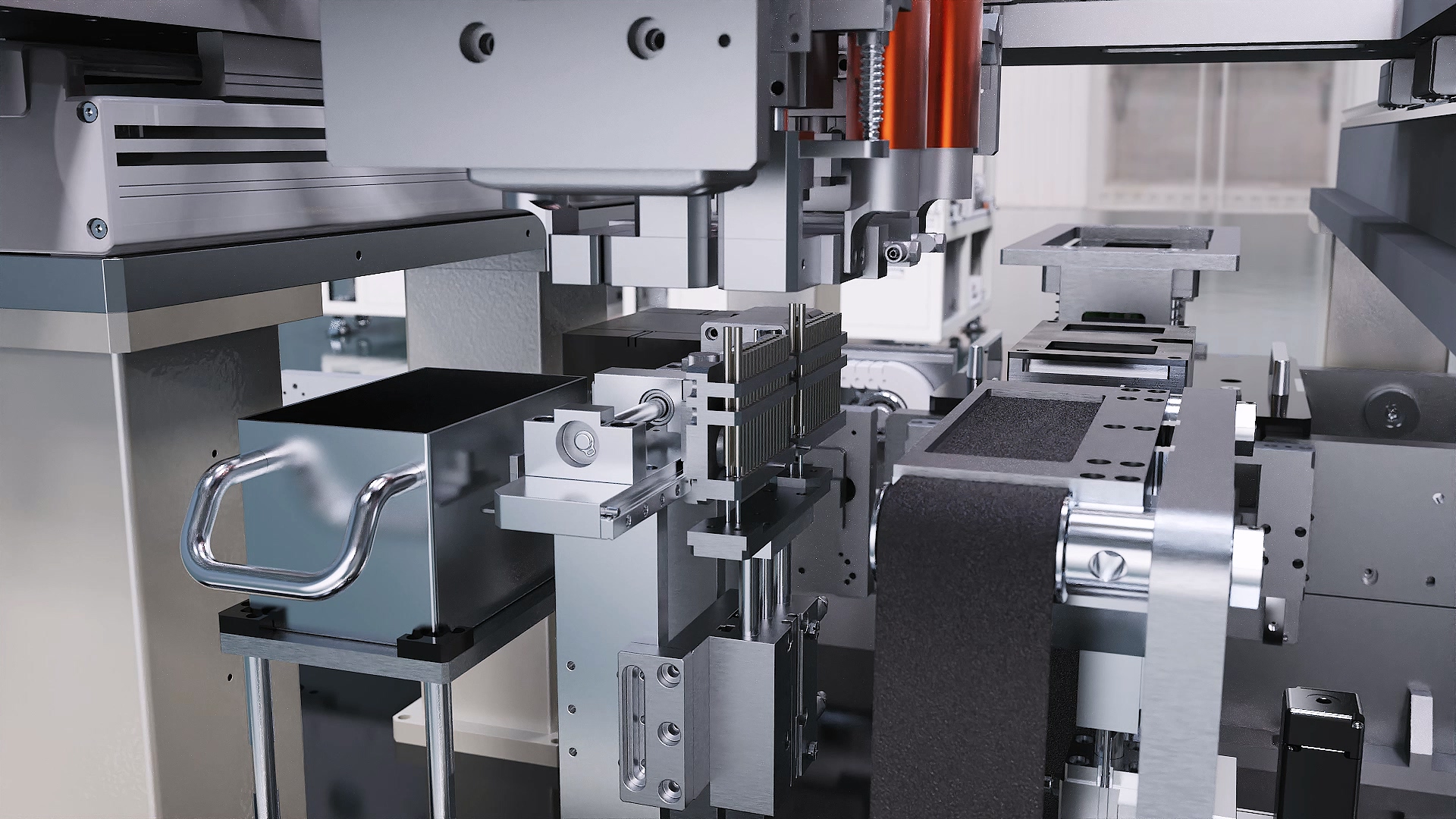

Cell electrical connection welding
and electrode replacement technology
2

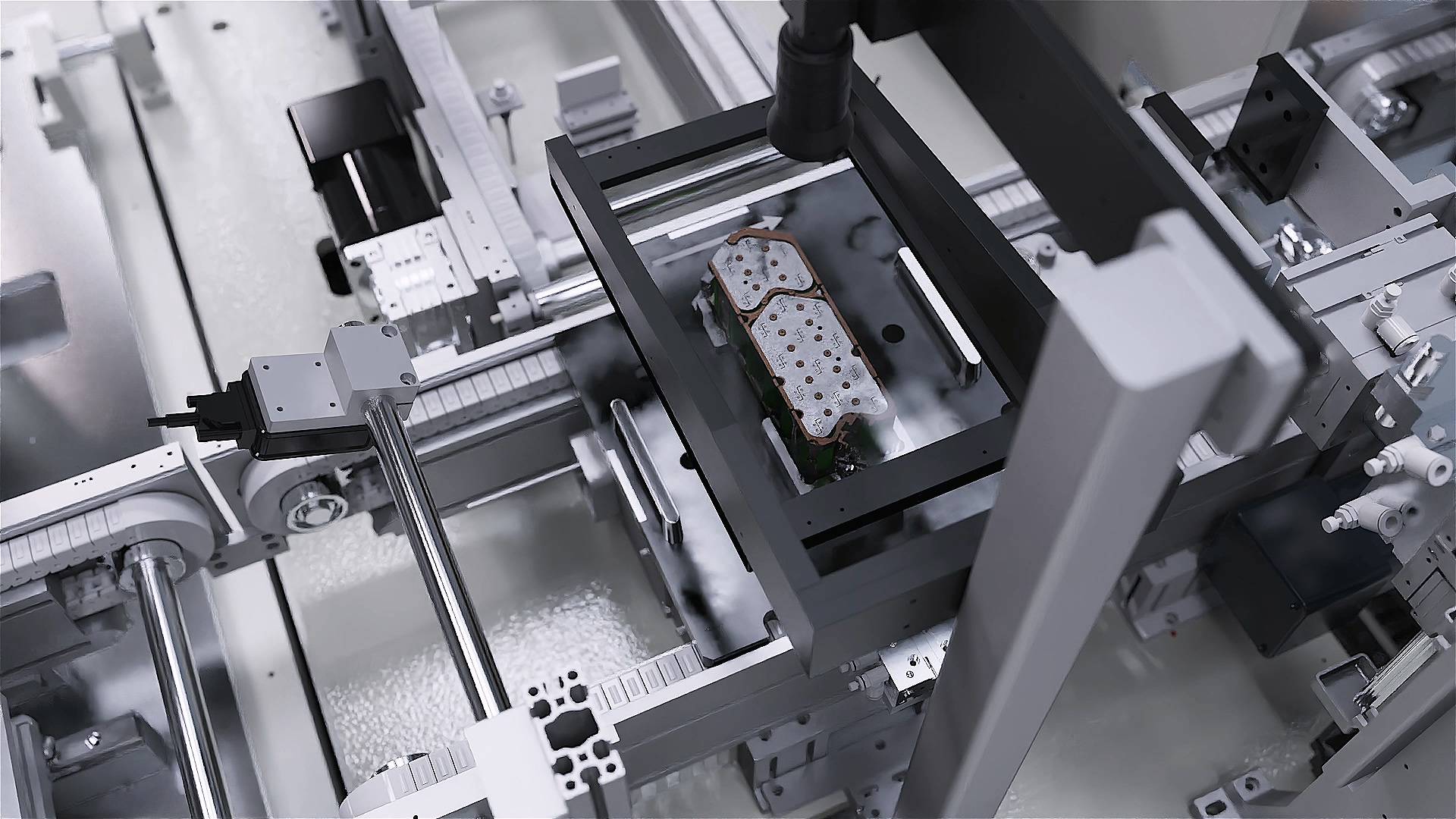

Vision Inspection Technology
Inspection of weld quality and battery exterior
3
Equipment Support
(Conveyor Built in Type)
Cell electrical connection welding
and electrode replacement technology

Inspection Item

  • Weiding (Spot Welding),
    Electrode Replacement Technology
  • Integrated Monitoring, Management System
  • Holder and Busbar Assembly
  • EOL (End-of-Line) Inspection

  • Module, BMS, Pack Assembly Equipment
  • Automatic & Manual Bolt Fastening

  • Cell Inspection & Assembly

Specifications

Module & Pack Assembly
     40m x 5m x 2.2m
Module Assembly
     24m x 5m x 2.2m
Pack Assembly
     20m x 5m x 2.2m
