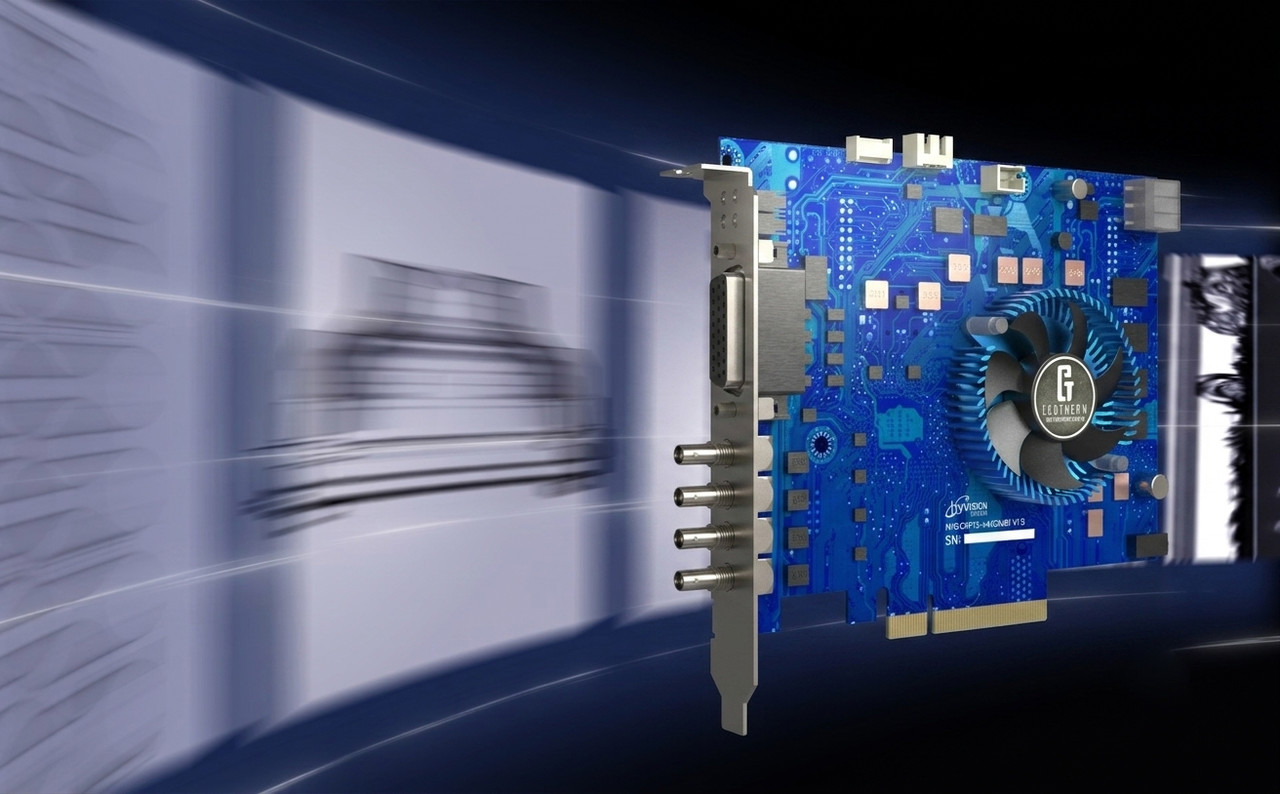

CoaXPress Grabber (1.1 / 2.0)
HVG-CXP12-x4 (G3x8)
Up to 2× More Bandwidth. Ultra-Fast Data Transfer.
Introducing the upgraded CoaXPress Grabber, setting a new standard for machine vision.
Featuring up to 2× higher bandwidth and 12.5 Gbit/s × 8-lane ultra-high-speed data transmission,
it delivers faster image processing, enhanced reliability, and greater inspection precision.
From complex geometry measurement to precision quality control!

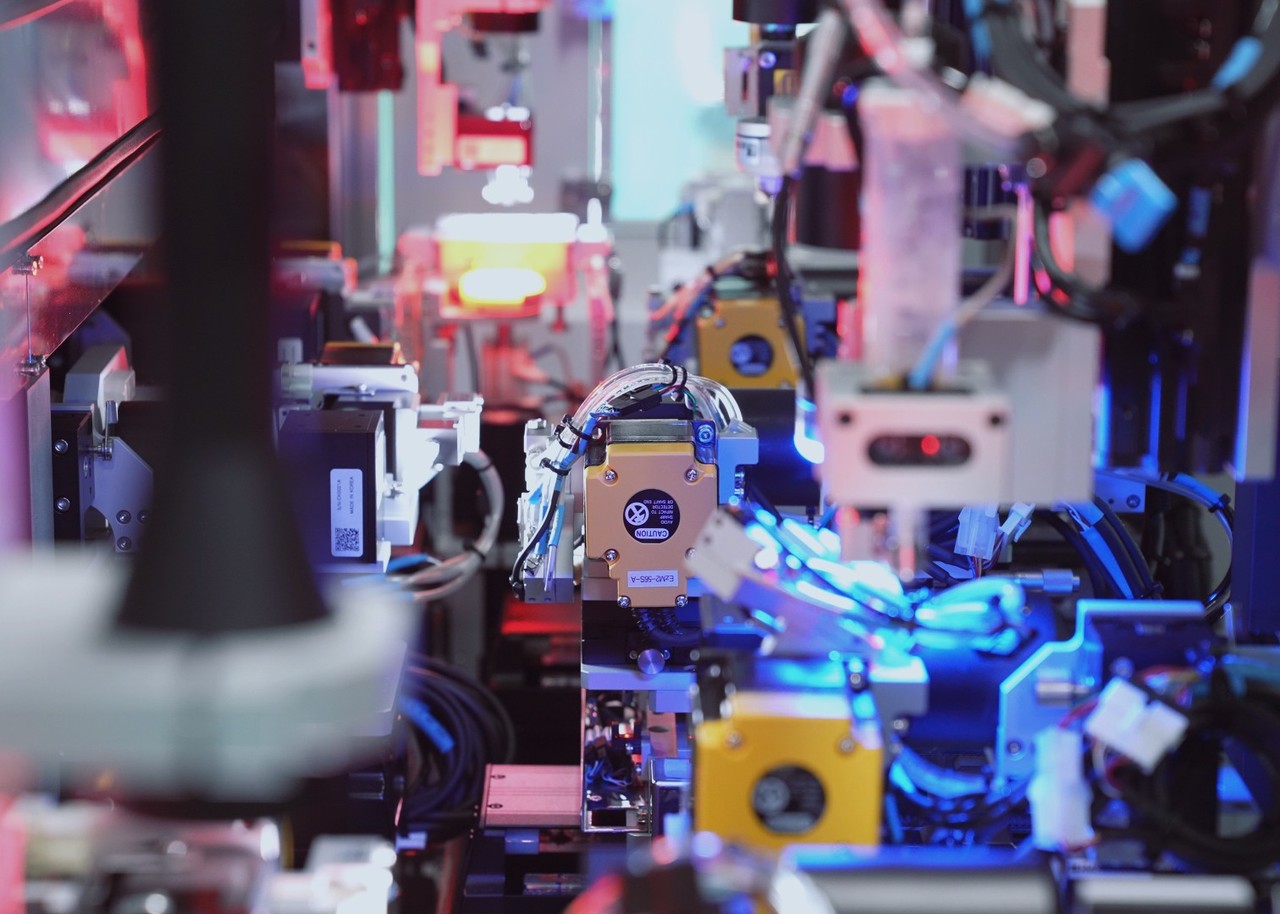

Machine Vision Inspection Equipment
CoaXPress Grabber는 Area Scan과 Line Scan 카메라를
모두 지원하며, 여러 대의 고해상도 카메라가 동시에 동작하는
환경에서도 안정적인 영상 수집이 가능합니다. Multi Stream
및 Multi Tap 기술을 기반으로 대용량 영상 데이터를 효율적으로
처리하여 고속 생산 라인이나 다채널 검사 시스템에서도 끊김 없는 영상 획득과 정밀한 검사 성능을 제공합니다.
From complex geometry measurement
to precision quality control!
Application Field
High-Precision Inspection
& Quality Control
HyVISION SYSTEM's 3D Inspection Software precisely scans the dimensions, shape, and surface conditions of the target object using laser technology to acquire accurate 3D data. The data is analyzed in real time, and any areas that fall outside the user-defined tolerance range are automatically detected.
New technologies are constantly upgraded!
초고속 이미지 캡처 / 데이터 전송
기존 대비 약 2배 수준의 대역폭과
12.5 Gbit/s × 8 Lane의 고속 데이터 전송을 지원합니다.
· Camera Interface: CoaXPress 1.1, 2.0, 2.1
· Four (4X) CoaXPress CXP 12 connections (Micro BNC)
· PCIe 3.0 (Gen 3) x 8 bus
· Camera Types: Area/Line Scan Camera, Monochrome/Color Camera
· Feature rich set of 20 digital I/O lines

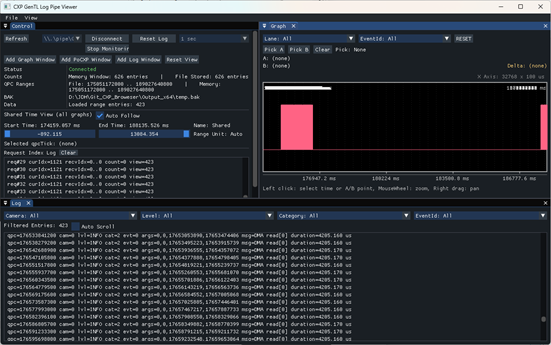

Debug Log Viewer Software 제공
전용 디버깅 소프트웨어를 통해 검사 설비를
실시간 모니터링 할 수 있습니다.
Eye Scan, Signal/Performance Graph,
Internal Log Monitoring 등의 기능을 제공하여
시스템 상태를 신속하게 분석하고
비전 소프트웨어와 원활한 통합을 지원합니다.

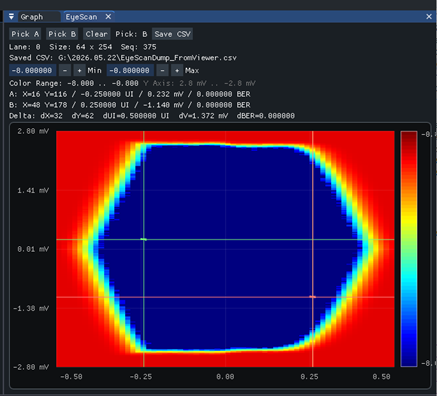

Eye Scanning

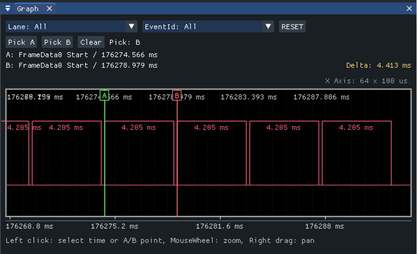

Signal/Performance Graph
Internal Log Monitoring

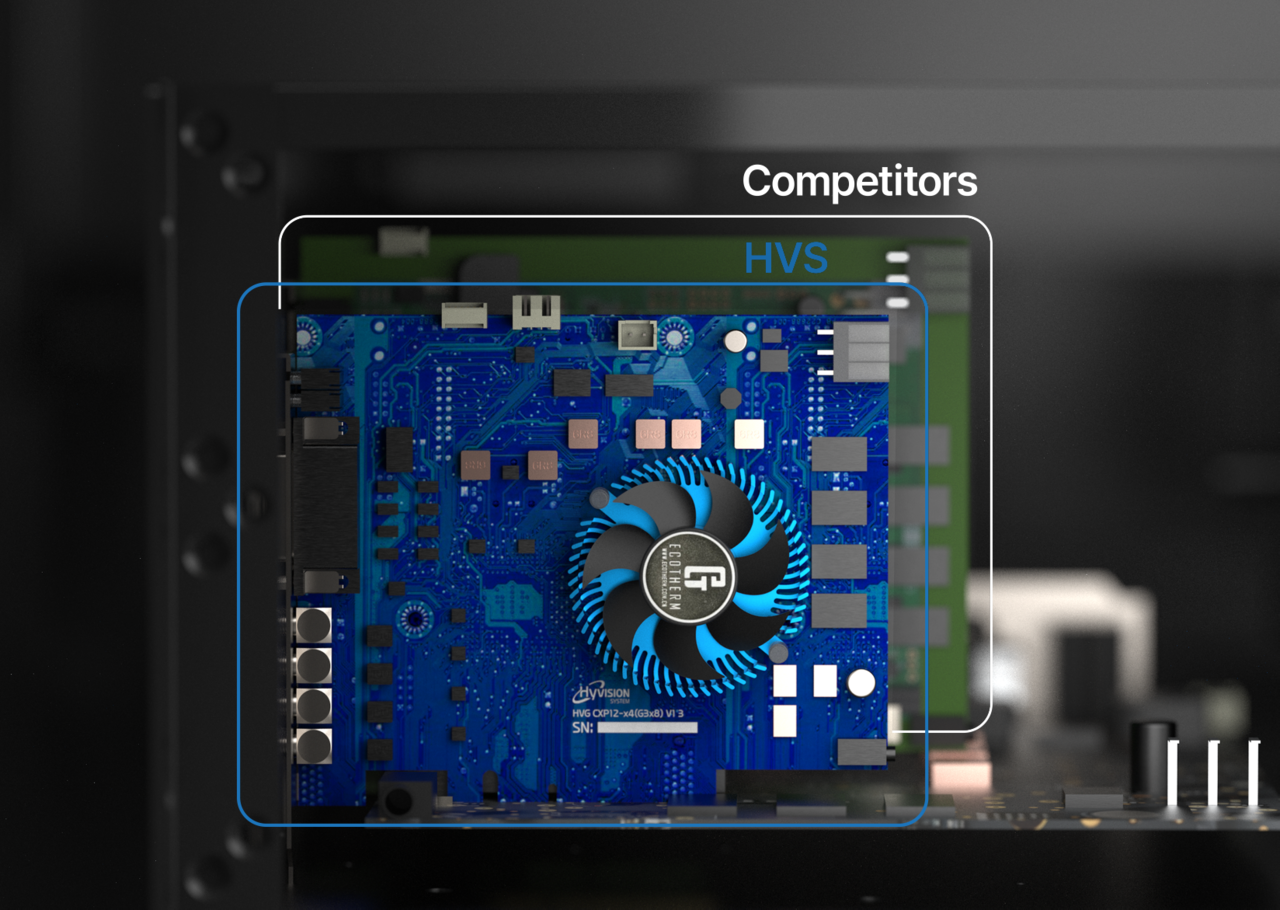

Compact Size
타사 동급 제품 대비
컴팩트한 132 × 103mm 소형 모델로,
공간 제약이 있는 설치 환경에서도
유연한 시스템 구성이 가능합니다.
납기·품질·가격 경쟁력을
모두 갖춘 공급 파트너
안정적인 공급과 신속한 납기 대응으로
경쟁사 대비 약 40% 수준의 가격 경쟁력을 제공합니다.
국내외 주요 인증 확보
JIIA, KC, FCC, CE 등 주요 국내외 인증을 획득하여
국내는 물론 유럽 및 미국 시장의 요구 사항을 충족합니다.
글로벌 고객사의 다양한 프로젝트에 신속하게
대응하여 적용할 수 있습니다.
New Technologies are constantly upgraded!
Main Features
3D Data Registration
Technology for Aligning
3D Scan Data into a Single Dataset
After converting the relative
coordinate systems of each scan
dataset into a common reference
coordinate system, an ICP based
registration algorithm is applied to
align all the scan data into a single,
unified point cloud.
Pose Compensation
Technology for Correcting Distorted
Models into Accurate Spherical Shapes
Calibration is performed by taking
into account various installation
angles of the 3D scanner.
By estimating and correcting the
scanner's roll and pitch values,
errors in position and orientation are minimized, enabling the acquisition
of highly accurate, distortion-free data.
Automatic Data Alignment
Data Alignment for Tilt, Rotation, and Shift
Using a PCA (Principal Component Analysis)
based axis estimation method, the system automatically corrects tilt and positional errors in the point cloud, providing stable coordinate system alignment without the need for manual reference point setting.
Real-time Data Acquisition
Real-Time Inspection Data Processing
Data collected from the 3D scanner
is visualized on-screen in real time,
while dimensional inspection is automatically performed on over 500 measurement points. Through high-speed computational optimization, inspection results are delivered instantly without delay.
