Description
Single index 4 para
Semi Auto
Dispensing Curing
| Item | Description | Site |

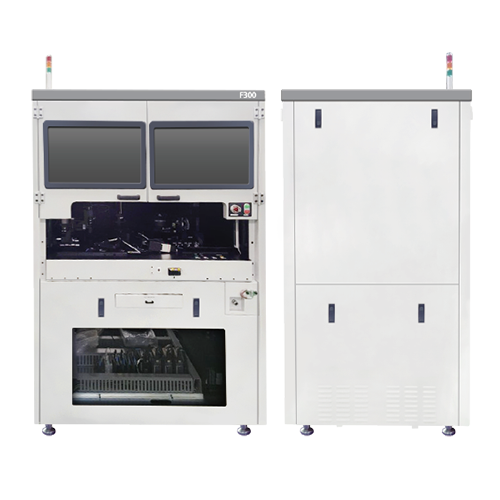

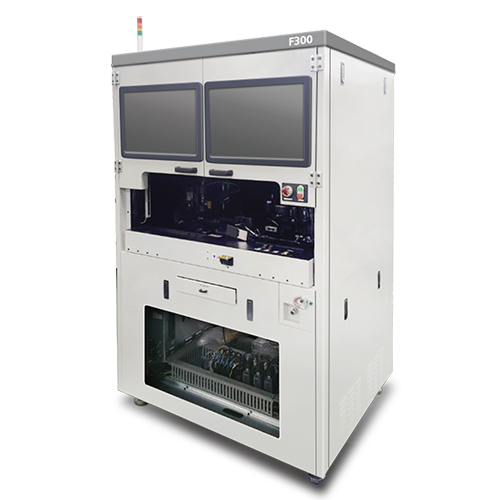

| Title | AF & FF CCM EOL Process : Auto focusing & dispensing system | |
| TEST categories | Device loading/unloading (manual or auto handler) Open/Short Test (manual or auto socket) | D |
| Focusing (EIAJ / SFR) | A | |
| Blemish image test (White) | B | |
| Dispensing & UV Cure (+ UV Epoxy Alarm Sensor) | C | |
| CCM resolution | Up to Up to 16Mpixels @YUV 4:2:2 Sensor | – |
| Built-in tester | 4x V5UR2 DC 1.5G Tester (USB3.0 Interface / MIPI 4 Lane) | A,B,C,D |
| Built-in PC | 1x PC / 2x Monitor | – |
| Collimator lens | CL400-A90 (FOV 90°) | A |
| Light 1 | [Far Focus] HVL-700D LED Light Source 770x590mm | A |
| Light 2 | [Image] HVL-65B 65Pie LED Image Light Source | B |
| Robot | Focus 4axis, Dispensing 3axis, UV Cure 2axis, Vision/Laser 2axis | – |
| Vision camera | 2set (Focus / Dispenser) | A,C |
| Laser | 2set (Focus / Dispenser) | A,C |
| Loading method | 1 index 4 para / 4 face up image direction, Manual or Auto | A,B,C,D |
| Barcode reader | Optional | D |
| Rotator | 270° Back Rotation / Non-pogo pin contact type | – |
| Utility | Air Pressure: 4.5~5.5Kg/cm2, Air horse: 8mm, 1Line | – |
| Power | AC220V. 2phase/50,60Hz (Can be customized) | – |
| UPH | 240 @ 16M Pixel FF/AF CCM | – |
| Dimension (mm) | W1200 X D960 X H1855 | – |
